Linear Layout in Triton (2): LL Examples

Prerequisites

  • Part 1 of this series (concepts, GF(2) intuition, and basis vectors)
  • A working knowledge of CUDA-thread hierarchy (CTA → warp → lane) or an equivalent AMD mental model

What you will learn here

  • How to map hardware dimensions to layout inputs without memorising folklore
  • When to pick each constructor (identity1D, strided1D, zeros1D, and manual bases)
  • How to combine layouts safely through composition, inversion, and reshape calls
  • End-to-end examples that you can adapt straight into lowering code

1. Dimension Naming Conventions and Semantics

Understanding dimension names is the gateway to reading and writing LinearLayout code fluently. This section maps Triton’s encoding attributes to the input/output dimension vocabulary you will use throughout the API.

1.1. Input Dimensions — Hardware Hierarchy

Input dimensions describe where a value lives in hardware. The standard progression follows the GPU execution model from finest to coarsest granularity: There are two kinds of layouts.

1.1.1 Distributed (Register-based) Layouts

it depicts physical layout in hardware.

"register" → Index into per-thread register slots (values held by one thread)
"lane"     → Thread ID within a warp (0–31 on NVIDIA, 0–63 on AMD)
"warp"     → Warp ID within a CTA (Cooperative Thread Array)
"block"    → Block (CTA) ID within the grid/cluster

Conversion example: BlockedEncodingAttr → LinearLayout

  SmallVector<int64_t> shape = {64, 16};
  auto cta = mlir::triton::gpu::CTALayoutAttr::getDefault(&ctx, /*rank=*/2);
  auto blocked = mlir::triton::gpu::BlockedEncodingAttr::get(
      &ctx,
      /*sizePerThread=*/{4, 2},
      /*threadsPerWarp=*/{8, 4},
      /*warpsPerCTA=*/{2, 2},
      /*order=*/{1, 0},
      /*ctaLayout=*/cta);

  auto ll = blocked.toLinearLayout(shape);

// final ll
// - register=1 -> (0, 1)
//   register=2 -> (1, 0)
//   register=4 -> (2, 0)
// - lane=1 -> (0, 2)
//   lane=2 -> (0, 4)
//   lane=4 -> (4, 0)
//   lane=8 -> (8, 0)
//   lane=16 -> (16, 0)
// - warp=1 -> (0, 8)
//   warp=2 -> (32, 0)
// - block is a size 1 dimension

These attributes decompose into basis vectors. For a quick sanity check, evaluate ll.apply at a few known points:

// Thread 0, register 0 should map to tensor index 0
assert(ll.apply({{S("register"), 0}, {S("lane"), 0}, {S("warp"), 0}})[0].second == 0);

// Thread 0, register 1 should map to the next element along the first axis
assert(ll.apply({{S("register"), 1}, {S("lane"), 0}, {S("warp"), 0}})[0].second == 1);

1.1.2 Shared Memory Layouts

This represents shared memory. Shared encodings replace the fine-grained hardware axes (register, lane, warp) with a single offset dimension:

"offset" → Linear index in shared memory (measured in elements, not bytes)
"block"  → CTA ID (optional; used when reasoning about multi-CTA scenarios)

Swizzled shared example

  SmallVector<int64_t> shape = {64, 16};
  auto cta = mlir::triton::gpu::CTALayoutAttr::getDefault(&ctx, /*rank=*/2);
  auto direct = mlir::triton::gpu::SwizzledSharedEncodingAttr::get(
      &ctx,
      /*vec=*/2,
      /*perPhase=*/1,
      /*maxPhase=*/1,
      /*order=*/{1, 0},
      /*ctaLayout=*/cta);

  auto ll = mlir::triton::gpu::toLinearLayout(shape, direct);
  llvm::outs() << "Non-swizzled layout: " << direct << "\n";
  llvm::outs() << "No swizzling layout: " << ll << "\n";

  auto swizzled = mlir::triton::gpu::SwizzledSharedEncodingAttr::get(
      &ctx,
      /*vec=*/8,
      /*perPhase=*/2,
      /*maxPhase=*/4,
      /*order=*/{1, 0},
      /*ctaLayout=*/cta);
  llvm::outs() << "Swizzled: " << swizzled << "\n";
  auto ll2 = mlir::triton::gpu::toLinearLayout(shape, swizzled);
  llvm::outs() << "swizzled layout: " << ll2 << "\n";

// Non-swizzled layout: #ttg.swizzled_shared<{vec = 2, perPhase = 1, maxPhase = 1, order = [1, 0]}>
// No swizzling layout:
//  - offset=1 -> (0, 1)
//    offset=2 -> (0, 2)
//    offset=4 -> (0, 4)
//    offset=8 -> (0, 8)
//    offset=16 -> (1, 0)
//    offset=32 -> (2, 0)
//    offset=64 -> (4, 0)
//    offset=128 -> (8, 0)
//    offset=256 -> (16, 0)
//    offset=512 -> (32, 0)
//  - block is a size 1 dimension
// where out dims are: [dim0 (size 64), dim1 (size 16)]
// Swizzled: #ttg.swizzled_shared<{vec = 8, perPhase = 2, maxPhase = 4, order = [1, 0]}>
// 8x8 swizzled layout:
//  - offset=1 -> (0, 1)
//    offset=2 -> (0, 2)
//    offset=4 -> (0, 4)
//    offset=8 -> (0, 8)
//    offset=16 -> (1, 0)
//    offset=32 -> (2, 8)
//    offset=64 -> (4, 0)
//    offset=128 -> (8, 0)
//    offset=256 -> (16, 0)
//    offset=512 -> (32, 0)
//  - block is a size 1 dimension

Use this form when you need to reason about shared-memory bank conflicts at the IR level, before lowering to LLVM.

1.2. Output Dimensions — Logical Tensor Axes

Output dimensions always correspond to the logical tensor axes in their original order. The layout’s order field controls internal memory layout (row-major vs. column-major), but the output dimension names remain canonical:

  "dim0" → First tensor axis
  "dim1" → Second tensor axis
  "dim2" → Third tensor axis

1.3. Dimension Ordering, Flattening, and Reshaping

All LinearLayout operations interpret dimensions in minor-to-major order:

  • The first dimension is the most minor (changes fastest in memory).
  • The last dimension is the most major (changes slowest).

This convention affects how flattenIns, flattenOuts, reshapeIns, and reshapeOuts combine or split dimensions.

Flatten Rule of Thumb


  auto cta = mlir::triton::gpu::CTALayoutAttr::getDefault(&ctx, /*rank=*/2);
  auto blocked = mlir::triton::gpu::BlockedEncodingAttr::get(
      &ctx,
      /*sizePerThread=*/{4, 2},
      /*threadsPerWarp=*/{8, 4},
      /*warpsPerCTA=*/{2, 2},
      /*order=*/{1, 0},
      /*ctaLayout=*/cta);
  auto ll = blocked.toLinearLayout({64, 16});
  llvm::outs() << "ll: " << ll << "\n";

  auto new_layout =  ll.flattenIns();
  llvm::outs() << "new_layout: " << new_layout << "\n";

// ll:
//  - register=1 -> (0, 1)
//    register=2 -> (1, 0)
//    register=4 -> (2, 0)
//  - lane=1 -> (0, 2)
//    lane=2 -> (0, 4)
//    lane=4 -> (4, 0)
//    lane=8 -> (8, 0)
//    lane=16 -> (16, 0)
//  - warp=1 -> (0, 8)
//    warp=2 -> (32, 0)
//  - block is a size 1 dimension
// where out dims are: [dim0 (size 64), dim1 (size 16)]
// new_layout:
//  - register=1 -> (0, 1)
//    register=2 -> (1, 0)
//    register=4 -> (2, 0)
//    register=8 -> (0, 2)
//    register=16 -> (0, 4)
//    register=32 -> (4, 0)
//    register=64 -> (8, 0)
//    register=128 -> (16, 0)
//    register=256 -> (0, 8)
//    register=512 -> (32, 0)
// where out dims are: [dim0 (size 64), dim1 (size 16)]

If you want a different flattening order (e.g., lane-major), transpose first:

  auto transposed_layout = ll.transposeIns({S("lane"), S("register"), S("warp"), S("block")});
  llvm::outs() << "transposed_layout: " << transposed_layout << "\n";

// transposed_layout:
//  - lane=1 -> (0, 2)
//    lane=2 -> (0, 4)
//    lane=4 -> (4, 0)
//    lane=8 -> (8, 0)
//    lane=16 -> (16, 0)
//  - register=1 -> (0, 1)
//    register=2 -> (1, 0)
//    register=4 -> (2, 0)
//  - warp=1 -> (0, 8)
//    warp=2 -> (32, 0)
//  - block is a size 1 dimension
// where out dims are: [dim0 (size 64), dim1 (size 16)]

Reshape Checklist

Before calling reshapeIns or reshapeOuts:

  1. Verify total size: The product of new dimension sizes must equal the product of old dimension sizes.
  2. Plan transposes: reshapeIns always flattens in minor-to-major order before splitting. If you need a different minor axis, transpose first.
  3. Check dimension counts: Use getInDimSize(name) or getOutDimSize(name) to confirm sizes before reshaping. Silent dimension drops are a common source of bugs.

Example workflow:

  auto ll = LinearLayout::identity1D(4, S("register"), S("dim0")) *
          LinearLayout::identity1D(8, S("lane"), S("dim0")) *
          LinearLayout::identity1D(2, S("warp"), S("dim0")) ;
  llvm::outs() << "LL: " << ll << "\n";

  auto flat = ll.flattenIns();
  llvm::outs() << "flat: " << flat << "\n";

  auto transposed = ll.transposeIns({S("lane"), S("warp"), S("register")});
  llvm::outs() << "transposed: " << transposed << "\n";

// LL:
//  - register=1 -> (1)
//    register=2 -> (2)
//  - lane=1 -> (4)
//    lane=2 -> (8)
//    lane=4 -> (16)
//  - warp=1 -> (32)
// where out dims are: [dim0 (size 64)]
// flat:
//  - register=1 -> (1)
//    register=2 -> (2)
//    register=4 -> (4)
//    register=8 -> (8)
//    register=16 -> (16)
//    register=32 -> (32)
// where out dims are: [dim0 (size 64)]
// transposed:
//  - lane=1 -> (4)
//    lane=2 -> (8)
//    lane=4 -> (16)
//  - warp=1 -> (32)
//  - register=1 -> (1)
//    register=2 -> (2)
// where out dims are: [dim0 (size 64)]

2. Practical Examples: Step-by-Step Construction

The following scenarios show how the APIs above compose into real Triton workflows. Each example walks through the mental model explicitly.

Arithmetic view (bitfield intuition): When two inputs contribute to the same output dimension via operator* and their basis bits do not overlap, the XOR accumulation is equivalent to standard integer addition over disjoint bitfields. For example,

auto L1 = LinearLayout::identity1D(4, S("lane"), S("dim0"));
auto L2 = LinearLayout::strided1D(8, 4, S("register"), S("dim0"));  // shift register by 2 bits
auto L  = L1 * L2;

// Effective arithmetic form (disjoint bitfields):
// dim0 = (lane % 4) + ((register % 8) << 2)
//      = (lane % 4) + (register % 8) * 4

This works because lane occupies the lower 2 bits of dim0, while register occupies the next 3 bits (shifted by 2 via stride=4). If the bitfields overlap (e.g., you deliberately place both on the same bit positions), the combination is true XOR, not integer addition.

2.1. Example 1 — Simple 1D Distribution Across Lanes

Scenario: Distribute 32 logical elements across 4 threads so that each thread owns 8 elements in a strided pattern.

Distribution pattern:

  • Thread 0: elements [0, 4, 8, 12, 16, 20, 24, 28]
  • Thread 1: elements [1, 5, 9, 13, 17, 21, 25, 29]
  • Thread 2: elements [2, 6, 10, 14, 18, 22, 26, 30]
  • Thread 3: elements [3, 7, 11, 15, 19, 23, 27, 31]

Construction:

auto L1 = LinearLayout::identity1D(4, S("lane"), S("dim0"));
auto L2 = LinearLayout::identity1D(8, S("register"), S("dim0"));
auto layout = L1 * L2;

// Verification
assert(layout.apply({{S("register"), 0}, {S("lane"), 0}})[0].second == 0);
assert(layout.apply({{S("register"), 1}, {S("lane"), 0}})[0].second == 4);
assert(layout.apply({{S("register"), 0}, {S("lane"), 1}})[0].second == 1);
assert(layout.apply({{S("register"), 2}, {S("lane"), 3}})[0].second == 11);

dim0 = (lane % 4) + ((register % 8) << 2)
     = (lane & 0b11) + ((register & 0b111) << 2)

2.2. Example 2 — 2D Blocked Layout (MMA Tile)

Scenario: A CTA cooperatively computes a 32×32 accumulator tile. Each warp handles a 16×8 MMA fragment (m16n8k16), and each lane packs two accumulator values in registers. We want a LinearLayout that maps (register, lane) coordinates back to logical (row, col) indices while respecting the register packing and warp tiling order used by NVIDIA’s nvidiaMmaTile.

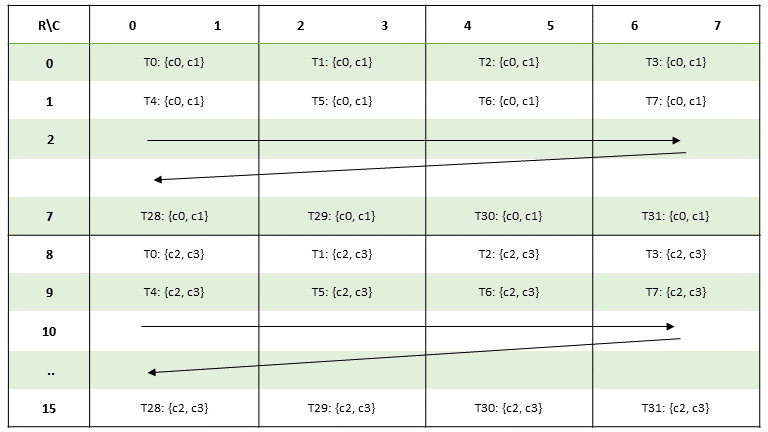

mma_fig86 Image brought from https://docs.nvidia.com/cuda/parallel-thread-execution/index.html#mma-16816-c-i8

Goal: Produce a layout equivalent to the relevant portion of LinearLayout.cpp::nvidiaMmaTile, but stripped down to just the accumulator mapping. The fragment is parameterised by

  • tileShape = {m=16, n=8}
  • repOrder = {dimM, dimN}
  • kWidth = 2
// Step 1: trivial CTA layout with the desired output dimension order
int rank = repOrder.size();
auto dimNames = standardOutDimNames(ctx, rank);
auto trivialShape = SmallVector<unsigned>(rank, 1);
LinearLayout ctaLayout =
    identityStandardND(S("register"), trivialShape, repOrder);

// Step 2: identify inner/outer logical axes
assert(rank == 2);
auto inner = order[0];
auto outer = order[1];

// Step 3: accumulate the blocked structure
assert(tileShape.size() == rank);
int m = tileShape[outer];   // rows handled per warp
int n = tileShape[inner];   // columns handled per warp

assert(m % 8 == 0);
assert(n % (kWidth * 4) == 0);
ctaLayout = ctaLayout *
            LinearLayout::identity1D(kWidth, S("register"), dimNames[inner]) *
            LinearLayout::identity1D(4, S("lane"), dimNames[inner]) *
            LinearLayout::identity1D(8, S("lane"), dimNames[outer]) *
            LinearLayout::identity1D(m / 8, S("register"), dimNames[outer]) *
            LinearLayout::identity1D(n / (kWidth * 4), S("register"),
                                      dimNames[inner]);

What each factor contributes

  • identity1D(kWidth, register → dimN) walks across the k-width columns that a single lane updates.
  • identity1D(4, lane → dimN) folds the 4-lane quad (threads 0–3, 4–7, …) into neighbouring columns.
  • identity1D(8, lane → dimM) groups lanes into eight-row strips (lane >> 2).
  • identity1D(m/8, register → dimM) repeats the strip across the vertical extent of the tile.
  • identity1D(n/(kWidth*4), register → dimN) handles column repetitions when n > kWidth*4.

Together these six factors pack lane quads into rows, distribute row groups across registers, and make the layout cyclic over the 16×8 accumulator tile contained in each warp.

Mapper / demapper sanity checks

You can test the layout by reproducing the PTX warp-tile mapping in Python. The helper below mirrors how the layout turns (register, lane) pairs into (outer=row, inner=col) coordinates and back:

import numpy as np
from collections import defaultdict

def mapper(register, lane, kWidth=8, m=16, n=8):
    """(lane, register) → (outer=row, inner=col)"""
    m_prime = m // 8                     # row repetition (two 8-row halves)
    n_prime = max(1, n // (kWidth * 4))  # column repetition (>=1 when n≥32)

    inner = (register % kWidth) * 4 + lane % 4
    outer = (lane // 4) % 8

    outer = outer * m_prime + (register // kWidth) % m_prime
    inner = inner * n_prime + (register // (kWidth * m_prime)) % n_prime
    return outer, inner

def demapper(outer, inner, kWidth=8, m=16, n=8):
    """(outer=row, inner=col) → (lane, register)"""
    m_prime = max(1, m // 8)
    n_prime = max(1, n // (kWidth * 4))

    inner_base = inner // n_prime
    rep_inner = inner % n_prime

    lane = (outer % 8) * 4 + (inner % 4)

    reg0 = (inner_base // 4) % kWidth
    reg1 = outer % m_prime
    reg2 = rep_inner

    register = reg0 + kWidth * (reg1 + m_prime * reg2)
    return lane, register

Running demapper across the 16×16 accumulator viewport prints the lane/register assignments for each row. You should see the familiar Hopper-style pattern where four consecutive columns belong to the same four-lane subgroup, and rows advance in steps of eight threads:

kWidth, m, n = 8, 16, 16
array = [[demapper(row, col, kWidth=kWidth, m=m, n=n) for col in range(n)]
         for row in range(m)]

def tie(row):
    d = defaultdict(list)
    for reg, lane in row:
        d[reg].append(lane)
    return [(r, d[r]) for r in sorted(d.keys())]

for row, r in enumerate(array):
    print(f"row {row:2d}", tie(r))

The output packs each row into eight-lane groups (lane >> 2) and shows how registers cycle every kWidth columns. This is a direct confirmation that our simplified ctaLayout reproduces the PTX accumulator expectations—exactly what you need before calling invertAndCompose to stitch the accumulator to shared-memory staging buffers.

3. Core API Detailed Guide

This section walks through the core LinearLayout constructors and combinators, showing you how to build, manipulate, and apply layouts in practice, with extra commentary and quick sanity checks you can paste into your own code.

3.1. Basic Constructors — Build 1D Pieces

All three factory helpers return a one-dimensional layout. You stack them with operator* to produce richer, multi-dimensional structures.

3.1.1. identity1D — Pass-Through Mapping

static LinearLayout identity1D(
  int32_t size,        // Input domain size (must be power of two)
  StringAttr inDim,    // Input dimension name
  StringAttr outDim    // Output dimension name
);

Semantics: L(x) = x for x ∈ [0, size)

Example:

auto L = LinearLayout::identity1D(8, S("lane"), S("dim0"));
// L(0) = 0, L(1) = 1, ..., L(7) = 7
// Basis: [L(1)=1, L(2)=2, L(4)=4]

assert(L.apply({{S("lane"), 5}})[0].second == 5);

When to use:

  • Contiguous, one-to-one mappings (e.g., register indices inside a single thread)
  • As the “seed” layout when assembling more complex multi-dimensional structures

3.1.2. zeros1D — Broadcast / Replication

static LinearLayout zeros1D(
  int32_t size,
  StringAttr inDim,
  StringAttr outDim,
  int32_t outDimSize = 1
);

Semantics: L(x) = 0 for all x

Every input value maps to zero in the chosen output dimension. This models broadcasting: all threads share the same tensor index along this axis.

Example:

auto L = LinearLayout::zeros1D(8, S("lane"), S("dim1"));
// L(0) = L(1) = ... = L(7) = 0
// Basis: [0, 0, 0] — all basis vectors are zero

assert(L.apply({{S("lane"), 5}})[0].second == 0);

When to use:

  • Broadcasting a single value across all threads (e.g., a column vector broadcast)
  • Modeling data replication in multi-CTA scenarios

Optional parameter: outDimSize lets you record the logical extent even though all values collapse to zero. This is useful when you later compose or invert the layout and need to track the full codomain.

3.2. Direct Construction from Basis Vectors

When the helper constructors can’t express your pattern (swizzles, MMA layouts, custom permutations), build the layout manually from basis vectors.

LinearLayout(
  BasesT bases,                           // map<inDim, vector<vector<int>>>
  ArrayRef<StringAttr> outDimNames        // ordered output dimension names
);

Basis format:

  • bases[inDim][i] stores the value of L(inDim = 2^i, others = 0)
  • bases[inDim][i][j] gives the contribution to the j-th output dimension (outDimNames[j])

Example: 2D Swizzle

LinearLayout swizzle({
  {S("offset"), {
    {0, 1},  {0, 2},  {0, 4},  {0, 8},   // Column basis (no swizzle)
    {1, 0},  {2, 0},  {4, 4},  {8, 8}    // Row basis (swizzled)
  }}
}, {S("dim0"), S("dim1")});

// Basis interpretation:
// L(offset=1) = (0, 1)  — column bit 0
// L(offset=2) = (0, 2)  — column bit 1
// ...
// L(offset=16) = (1, 0)  — row bit 0
// L(offset=32) = (2, 0)  — row bit 1
// L(offset=64) = (4, 4)  — row bit 2 with swizzle!

Verification tip: Whenever you hand-roll a basis, test it with a few manually computed points to ensure your phase/stride arithmetic is correct:

// offset=17 → binary decomposition: 16 + 1
auto result = swizzle.apply({{S("offset"), 17}});
// L(17) = L(16) ⊕ L(1) = (1,0) ⊕ (0,1) = (1,1)
assert(result == SmallVector{{S("dim0"), 1}, {S("dim1"), 1}});

3.3. Layout Combination with operator*

friend LinearLayout operator*(LinearLayout inner, LinearLayout outer);

operator* builds the direct sum of two layouts. Think of it as:

  • Concatenating the input spaces (inner inputs remain independent of outer inputs)
  • XOR-accumulating contributions to shared output dimensions

Rules of thumb:

  1. Input dimensions can overlap — overlapping in-dims are merged; use disjoint dims when you want Cartesian products.
  2. Shared output dimensions receive XOR contributions from both operands.
  3. The left operand is more minor — its dimensions change faster.

Example 1: Building a 2D identity

auto L = LinearLayout::identity1D(4, S("lane"), S("dim1")) *
         LinearLayout::identity1D(8, S("register"), S("dim0"));

// Inputs: (register, lane)  — register is minor, lane is major
// Outputs: (dim0, dim1)
// L(register=3, lane=2) = (dim0=3, dim1=2)

Example 2: Sharing an output dimension (XOR interaction)

auto L1 = LinearLayout::identity1D(4, S("lane"), S("dim0"));
auto L2 = LinearLayout::identity1D(8, S("register"), S("dim0"));
auto L = L1 * L2;

// Both contribute to dim0, so their outputs XOR:
// L(lane=2, register=3) = (dim0 = 2 ⊕ 3 = 1)
assert(L.apply({{S("lane"), 2}, {S("register"), 3}})[0].second == 1);

Example 3: Broadcast combined with identity

auto L = LinearLayout::zeros1D(4, S("lane"), S("dim1")) *
         LinearLayout::identity1D(8, S("register"), S("dim0"));

// L(lane=?, register=5) = (dim0=5, dim1=0)
// All lanes share dim1=0 (broadcast), but register contributes to dim0

Mental model: Use operator* whenever two hardware dimensions co-exist at runtime (e.g., register × lane, warp × block). The result is a layout that maps the Cartesian product of inputs to (possibly XOR-ed) outputs.

3.4. Function Composition — compose

LinearLayout compose(const LinearLayout &outer) const;

Semantics: (outer ∘ this)(x) = outer(this(x))

Use compose when the output of one layout feeds directly into the input of another, creating a pipeline.

Requirements:

  • this’s output dimensions must exactly match outer’s input dimensions (names and sizes)
  • this->getOutDimSize(d) ≤ outer.getInDimSize(d) for all output dimensions d

Example:

  // block_layout: (register -> (offset, block))
  auto block_layout = LinearLayout::identity1D(256, S("register"), S("offset")) *
                      LinearLayout::zeros1D(1, S("register"), S("block"));

  auto swizzled_attr = mlir::triton::gpu::SwizzledSharedEncodingAttr::get(
      &ctx,
      /*vec=*/4,
      /*perPhase=*/2,
      /*maxPhase=*/2,
      /*order=*/{1, 0},
      /*ctaLayout=*/cta);
  SmallVector<int64_t> shape = {32, 32};

  // swizzled_layout: ((offset, block) -> (dim0, dim1))
  auto swizzled_layout = mlir::triton::gpu::toLinearLayout(shape, swizzled_attr);

  // composed: (register -> (dim0, dim1))
  auto composed = block_layout.compose(swizzled_layout);

  llvm::outs() << "block_layout: " << block_layout << "\n";
  llvm::outs() << "swizzled_layout: " << swizzled_layout << "\n";
  llvm::outs() << "composed: " << composed << "\n";

// block_layout:
//  - register=1 -> (1, 0)
//    register=2 -> (2, 0)
//    register=4 -> (4, 0)
//    register=8 -> (8, 0)
//    register=16 -> (16, 0)
//    register=32 -> (32, 0)
//    register=64 -> (64, 0)
//    register=128 -> (128, 0)
// where out dims are: [offset (size 256), block (size 1)]
// swizzled_layout:
//  - offset=1 -> (0, 1)
//    offset=2 -> (0, 2)
//    offset=4 -> (0, 4)
//    offset=8 -> (0, 8)
//    offset=16 -> (0, 16)
//    offset=32 -> (1, 0)
//    offset=64 -> (2, 4)
//    offset=128 -> (4, 0)
//    offset=256 -> (8, 0)
//    offset=512 -> (16, 0)
//  - block is a size 1 dimension
// where out dims are: [dim0 (size 32), dim1 (size 32)]
// composed:
//  - register=1 -> (0, 1)
//    register=2 -> (0, 2)
//    register=4 -> (0, 4)
//    register=8 -> (0, 8)
//    register=16 -> (0, 16)
//    register=32 -> (1, 0)
//    register=64 -> (2, 4)
//    register=128 -> (4, 0)
// where out dims are: [dim0 (size 32), dim1 (size 32)]

Why use compose?

  • Modularity: Test L1 and L2 independently before stitching them together.
  • Clarity: Express multi-stage transformations (register → offset → tensor) explicitly in code.

3.5. Invert and Compose — invertAndCompose

LinearLayout invertAndCompose(const LinearLayout &outer) const;

Semantics: Solve this(x) = outer(C(x)) for C

This is the workhorse function for data layout conversions. It computes a layout C that maps from this’s input space to outer’s input space, ensuring both layouts produce the same tensor coordinates.

Typical use case: Register → Shared Memory Store

// Source layout: (register, lane, warp) → (dim0, dim1)
auto regLayout = blocked.toLinearLayout(shape);

// Destination layout: (offset, block) → (dim0, dim1)
auto sharedLayout = swizzledSharedToLinearLayout(shape, sharedAttr);

// Conversion layout: (register, lane, warp) → (offset, block)
auto cvt = regLayout.invertAndCompose(sharedLayout);

// Meaning: "Which shared memory offset should (register=r, lane=l, warp=w) write to?"

Requirements:

  • outer must be surjective (cover all possible outputs)
  • outer’s codomain ≥ this’s codomain
  • outer can be non-injective (multiple inputs map to same output); the algorithm picks the smallest pre-image

Detailed example:

// 1) Register layout: thread 0, register 0 holds tensor[2,3]
auto regLayout = toLinearLayout(blockedEncoding);
assert(regLayout.apply({{S("register"),0}, {S("lane"),0}, {S("warp"),0}})
       == SmallVector{{S("dim0"),2}, {S("dim1"),3}});

// 2) Shared layout: offset 10 corresponds to tensor[2,3]
auto memLayout = toLinearLayout(sharedEncoding);
assert(memLayout.apply({{S("offset"),10}})
       == SmallVector{{S("dim0"),2}, {S("dim1"),3}});

// 3) Conversion: (register=0, lane=0, warp=0) → offset=10
auto cvt = regLayout.invertAndCompose(memLayout);
assert(cvt.apply({{S("register"),0}, {S("lane"),0}, {S("warp"),0}})
       == SmallVector{{S("offset"),10}});

Why it works: Both regLayout and memLayout map to the same tensor space (dim0, dim1). The inversion finds the shared memory offset that corresponds to the same tensor element.

3.6. Evaluating Layouts — apply and applyLinearLayout

Two complementary helpers let you inspect or materialize a layout.

Integer apply — For Testing and Debugging

SmallVector<std::pair<StringAttr, int32_t>>
apply(ArrayRef<std::pair<StringAttr, int32_t>> ins) const;

Feed integer inputs, get integer outputs. Perfect for:

  • Assertions in unit tests
  • REPL exploration to understand a layout
  • Manual verification of basis correctness

Example:

auto result = layout.apply({
  {S("register"), 3},
  {S("lane"), 5},
  {S("warp"), 1}
});
// result: {{S("dim0"), ...}, {S("dim1"), ...}}

assert(result[0].second == expectedDim0);
assert(result[1].second == expectedDim1);

MLIR applyLinearLayout — For LLVM Lowering

// Defined in include/triton/Conversion/TritonGPUToLLVM/Utility.h
SmallVector<std::pair<StringAttr, Value>>
applyLinearLayout(
  Location loc,
  RewriterBase &rewriter,
  const LinearLayout &layout,
  ArrayRef<std::pair<StringAttr, Value>> indices
);

Consumes MLIR Values (SSA values), emits LLVM IR to compute the layout function at runtime.

Example (during lowering):

Value regId = b.i32_val(0);
Value laneId = getLaneId(rewriter, loc);
Value warpId = getWarpId(rewriter, loc);

auto offsets = applyLinearLayout(loc, rewriter, cvtLayout, {
  {S("register"), regId},
  {S("lane"), laneId},
  {S("warp"), warpId}
});

Value sharedOffset = offsets[0].second;  // MLIR Value representing offset
// Use sharedOffset in a GEP or store instruction

Critical reminder: Always keep the dimension names in sync between applyLinearLayout inputs and the layout you created. Mismatched strings lead to silent wrong-code bugs!

Conclusion

Armed with the patterns above, LinearLayout stops being a black box and becomes a practical tool you can reach for daily.

NEXTLinear Layout in Triton (1): Basic Idea
